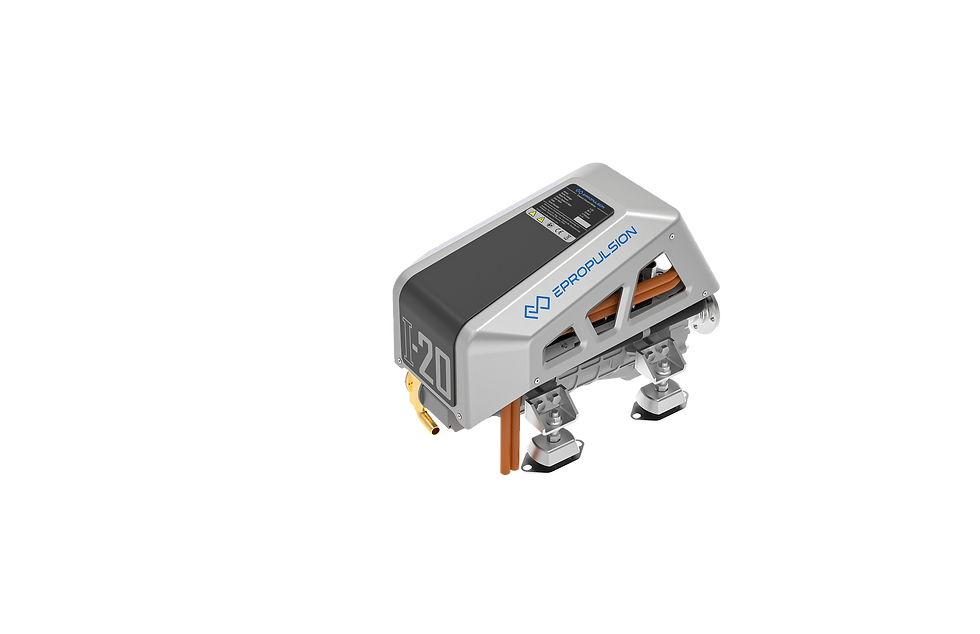

I-Series Electric Inboard Motor
ePropulsion I-Series is an environmental-friendly electric inboard motor series packed with innovative technology, smart features and human operation design. Underpinned by the highly integrated and modular ePropulsion Smart System Architecture (eSSA) and the IoT connectivity service, it provides users with an easy-to-use, intelligent, safe and reliable experience unlike any other.
The I-20 motor offers 20 kW of power input with an input voltage of 86 to 115 VDC, weighs 49.5 kg, and has dimensions of 580 x 330 x 380 mm. It uses a water cooling system (with an optional air-cooling system) and operates at a rated speed of 1500 rpm. Its integrated design incorporates the motor, gearbox, motor controller, system control unit, and cooling system, making it 65% lighter than typical combustion engines and 30% lighter than similar electric inboard motors, well-suited for medium-sized boats.
Specs
| Input power | 20 kW |
| Input voltage | 86 to 115 VDC |
| Weight | 49.5kg |
| Dimensions (L x W x H) | 580 x 330 x 380 mm |
| Cooling System | Water cooling (air cooling option |
| Rated RPM | 1500 rpm |
| Operation and interaction | Throttle & display (standard) |
| Connectivity service | Support |
